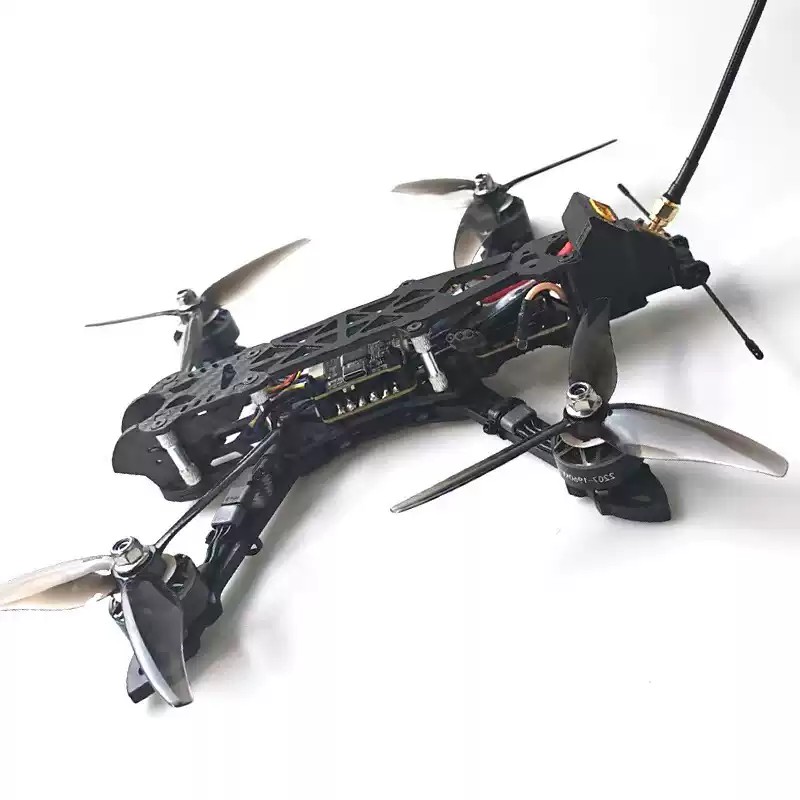

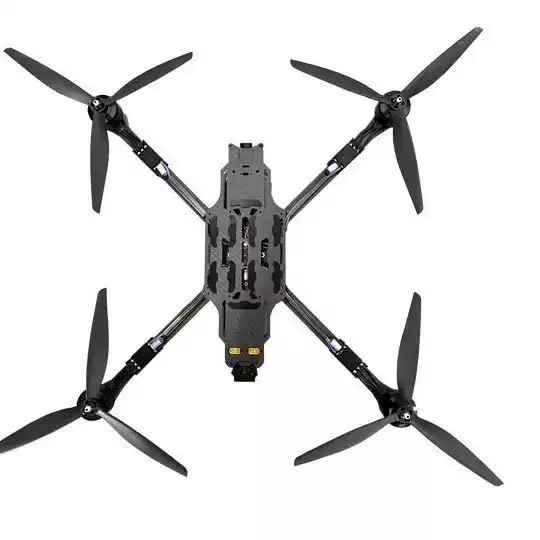

AS151PRO Kaikong 15-inch X-type quadcopter FPV drone

The AS151PRO Kaikong 15-inch X-type quadcopter FPV long-distance flight frame is made of thickened T700 carbon fiber plates and features modular quick-release arms, making it sturdy and resistant to damage. The 15-inch large propeller design provides excellent aerodynamic efficiency, enabling long-duration flight and sufficient power redundancy to support payloads. It is compatible with 915M long-distance flight receivers, high-definition gimbals, and high-power image transmission, making it sui

+86 18372707752
在线询价
产品详情
产品视频

请在脚本中设置视频链接后显示

Configuration Parameters

  • Model: AS151PRO

  • Net Weight: 2080 g

  • Material: Carbon Fiber

  • Frame: Arco15

  • Dimensions: 512 * 512 * 80 mm

  • Wheelbase: 640 mm

  • Propeller: 1507 (Polycarbonate)

  • Motor: ArcoSky 4218 350KV

  • GPS: No GPS

  • Antenna: ASA01 Mushroom Antenna, 150 mm

  • VTX: ArcoSky Glyph V4 5.8G 3W (Optional frequency band: 1.2G–7G; Power: 1.6W–10W, Digital Video Transmission)

  • Flight Controller: ArcoSky ASF01 F405 (Optional firmware: INAV, ArduPilot / PX4, AI)

  • ESC: ArcoSky ASE03 80A 4-in-1 (Optional: 50A, 60A)

  • Camera: CAPRO 1500TVL FPV Camera (Optional: 1500TVL, 1800TVL, Thermal Imaging Camera)

  • Recommended Battery: Li-Po Battery, 8S 8000mAh 10–50C, XT60 connector ×2

Features

  • FPV First-Person View Operation

  • Agile and stable flight performance

  • Maximum flight altitude: 5000 m

  • High-efficiency 4218 motors

  • Maximum speed: 130 km/h

  • Maximum flight range: 20 km

  • Rated payload: 7000 g

  • Maximum payload: 8000 g

  • Maximum takeoff weight: 13000 g

  • Endurance (no load): 40 min (8S 10000mAh ×2)

  • Endurance (rated payload): 17 min (8S 10000mAh ×2)
